| Product Model | W36AP |
|---|---|

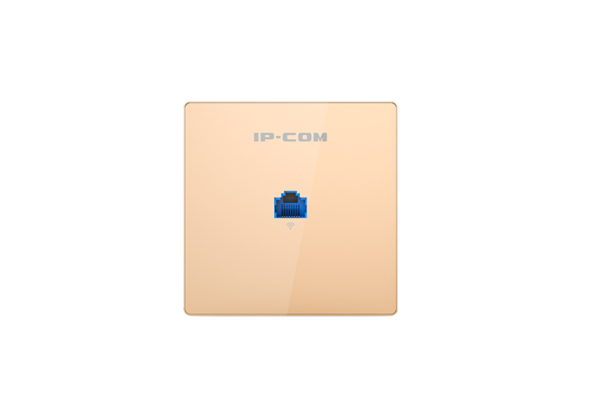

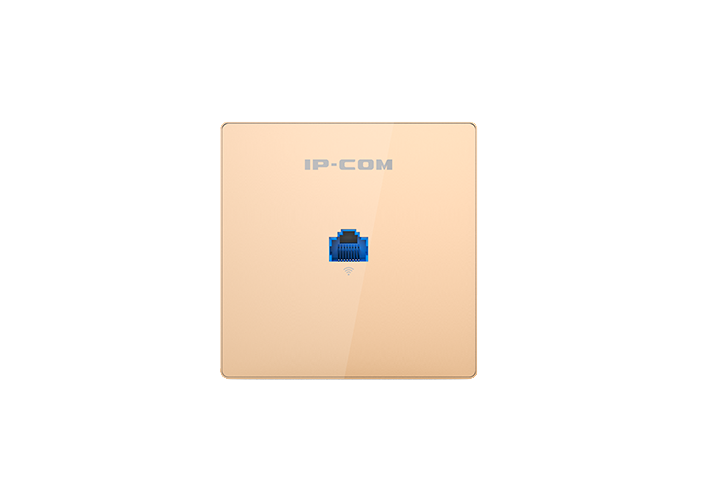

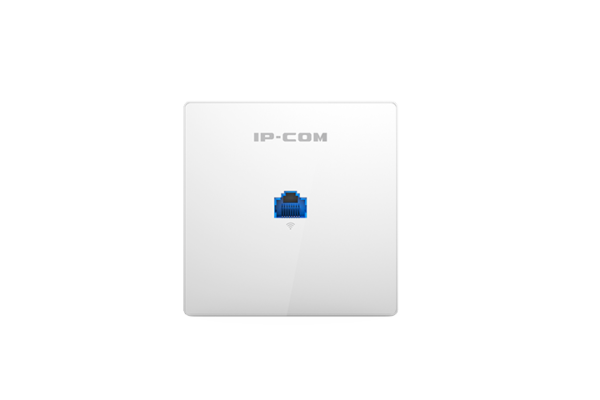

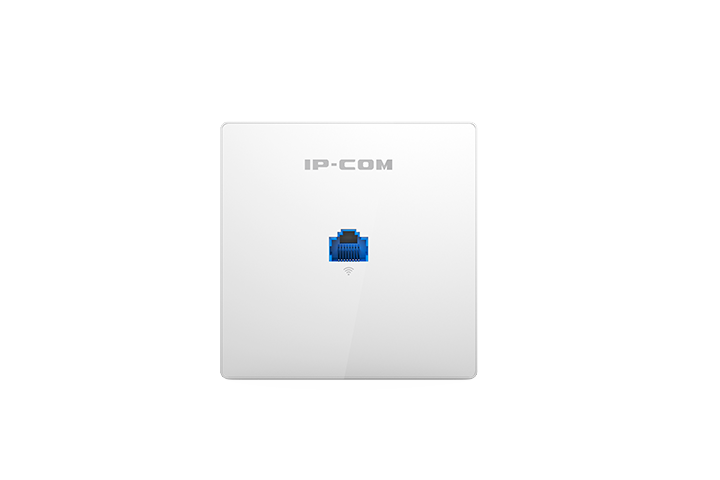

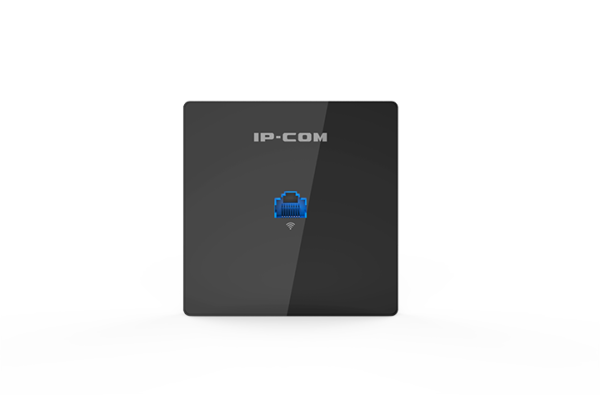

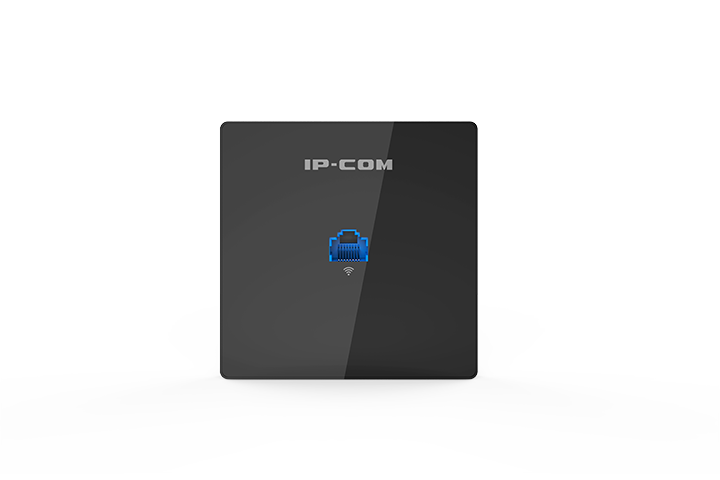

| Product Appearance | In-wall access point |
| Product Dimension | 86 x 86 x 32 mm |
| Application Scenarios | Wi-Fi coverage for large-sized apartments/villas/hotel rooms |
| Working Frequency Band | 2.400 – 2.4835 GHz, 5.15 0 – 5.250 GHz |
| Wireless Protocol Standard | IEEE 802.11a/b/g/n/ac |
| 2.4 GHz Access Rate | 1-300Mbps |
| 5 GHz Access Rate | 6-867Mbps |
| 2.4 GHz Maximum Connections | 128 |
| 5 GHz Maximum Connections | 128 |
| Ethernet Port | 2 10/100/1000 Base TX ports |
| Reset Button | 1 reset button |
| LED Indicators | 1 x SYS LED indicator and 1 x LAN LED indicator |
| Power Consumption of the Whole Device | Full load 7.8 W |
| Power Supply Mode | IEEE 802.3af |
| 2.4 GHz Antenna Gain | 4 dBi |
| 5 GHz Antenna Gain | 4 dBi |
| 2.4 GHz Output Power | 20+/-1.5 dBm |
| 5 GHz Output Power | 16+/-1.5 dBm |
| 11b 1 Mbps Received Sensitivity | -95 dBm |
| 11n MCS7 Received Sensitivity | -73 dBm |
| 11a 6 Mbps Received Sensitivity | -93 dBm |
| 11ac MCS7 Received Sensitivity | -75 dBm |
| Operating Mode | AP, Client + AP |
| SSID Hide | Supported |
| 2.4 GHz SSID Number | 8 |
| 5 GHz SSID Number | 4 |
| Chinese SSID | Support |
| AC Management | AC1000/AC2000/AC3000 supported |
| Default Login IP Address | 192.168.0.254 |
| Operating Temperature | -10°C to 45°C |
| Operating Humidity | 10% – 90% RH (non-condensing) |
| Storage Temperature | -30°C to 70°C |
| Storage Humidity | 10% – 90% RH (non-condensing) |
