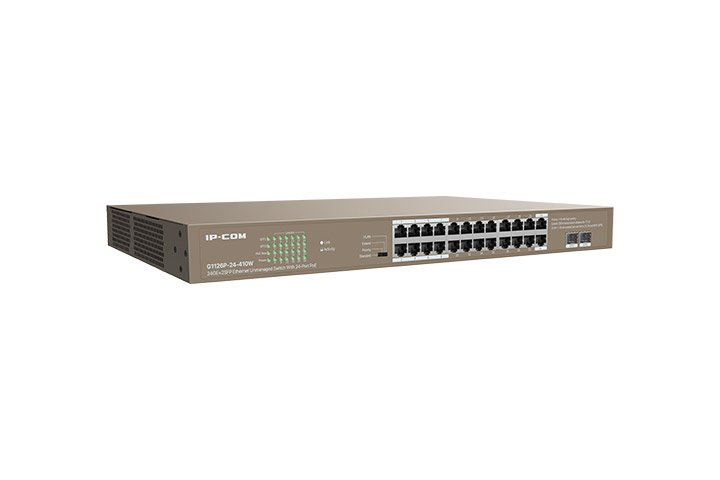

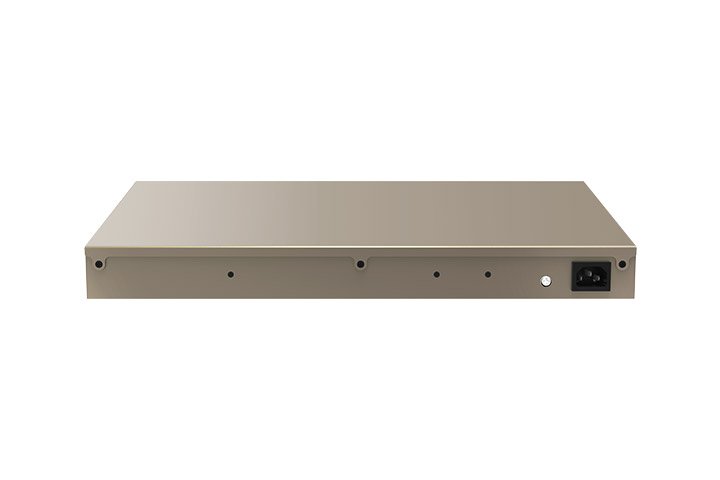

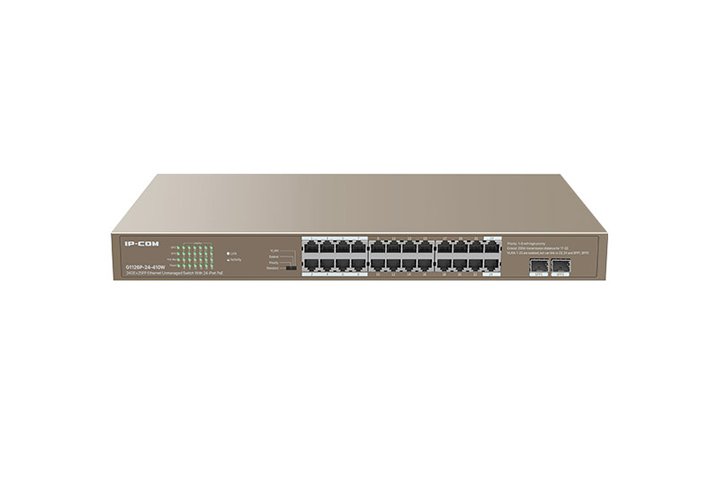

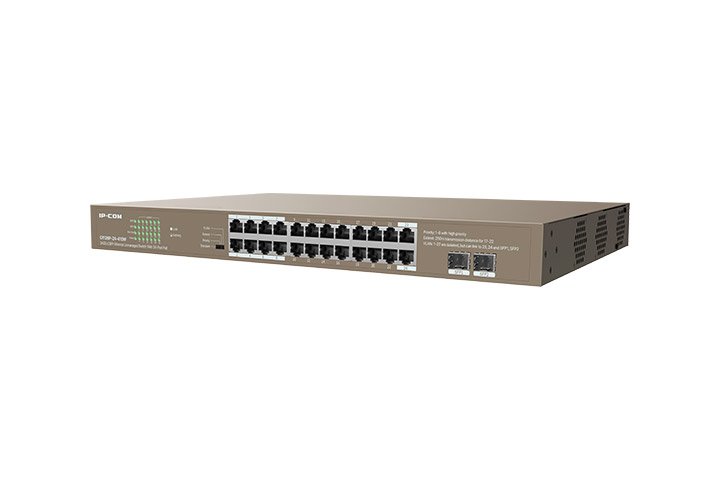

G1126P-24-410W

IP-COM, Network Product, Switch, Unmanaged POE

24GE+2SFP Ethernet Unmanaged Switch With24-Port PoE

Compliant with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x and IEEE802.3af/at standards
24*100/1000 Mbps Base-T RJ45 ports for data transmission and power supply
2*1000 Mbps Base-X SFP slots
8K MAC address table and MAC address auto-learning
IEEE 802.3x-compliant full-duplex ﬂow control and half-duplex backpressure ﬂow control
48Gbps backplane bandwidth
Maximum power consumption of a single port: 30W
Maximum power consumption of the switch: 410W
4 modes: standard, priority, extend and VLAN
Rack mounting

180 JOD

Model	G1126P-24-410W
Interfaces	24 * 100/1000 Mbps Base-T RJ45 ports (Data/Power) 2* 1000 Mbps Base-X SFP port
Lightning protection	≥6KV
Forwarding mode	Store-and-forward
Switching capability	48 Gbps
Packet forwarding rate	35.7 Mpps
Buffer	2M
MAC address table	8K
PoE supply	Ports 1-24 support standard IEEE802.3af/at 30W output per PoE port 370W output of the total PoE Power
Power consumption	410W output the whole device
Input voltage	AC: 100-240V~50/60Hz
Dimensions	44028444mm
Four Modes	Standard: Default mode of the switch. In this mode, it works as an unmanaged switch;all ports can communicate with each other separately. Priority: In this mode, port 23,24,SFP1 and SFP2 serve as uplink ports, ports 1 ‒ 8 serve as high priority port. All ports can communicate with each other separately. Extend: In this mode, data rate of ports 17 – 22 reduces to 10 Mbps, the maximum transmission distance can be 250 meters, and all ports can communicate with each other. VLAN: In this mode, ports 1 – 22 of the switch can communicate with port 23,24, SFP1, SFP2 separately, but cannot communicate with each other. You can enable this mode to reduce broadcast storm and isolate DHCP broadcast.
Operating environment	Operating Temperature: 0℃~45℃ (32℉~113℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
Certificates	FCC、CE、RoHS
