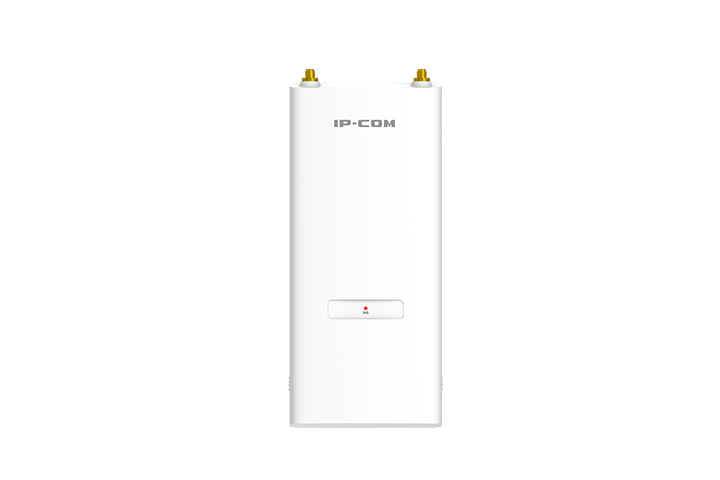

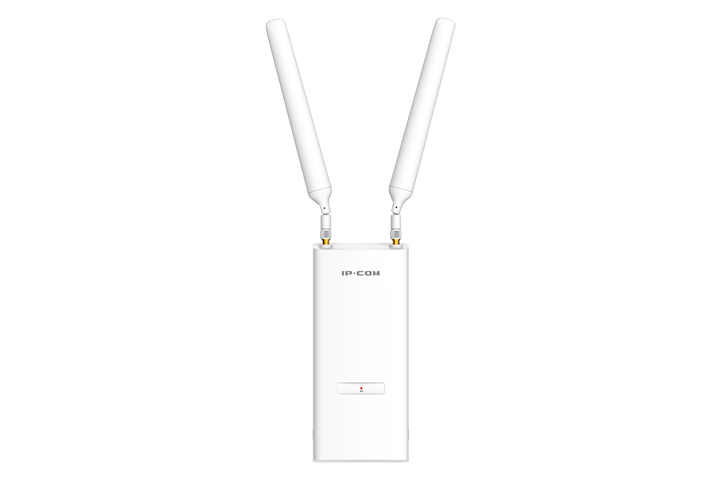

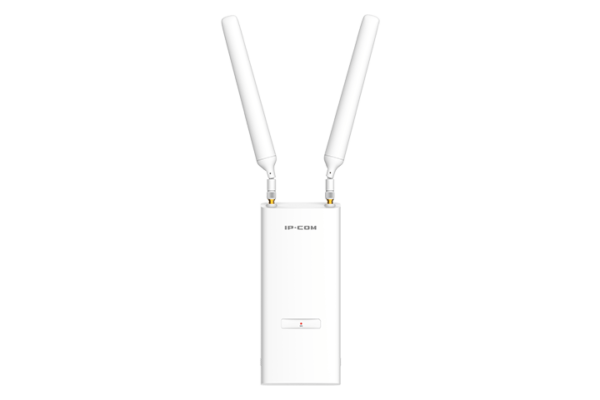

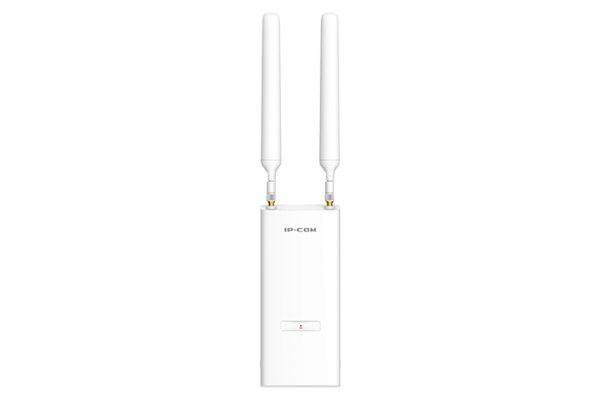

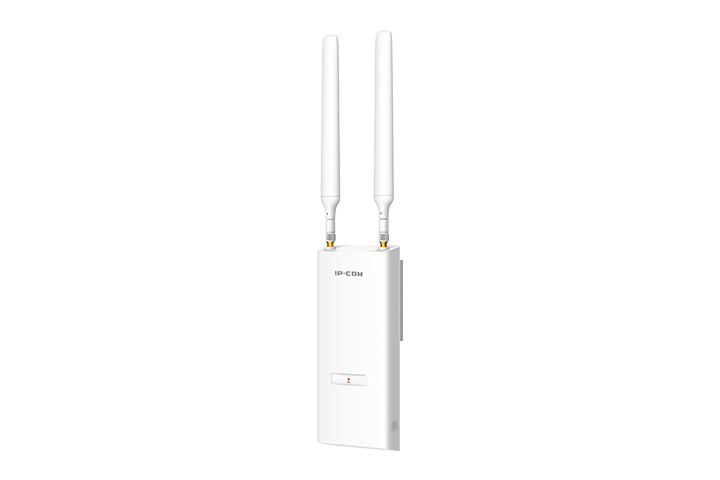

| Model | iUAP-AC-M |
|---|---|
| Mounting | Pole Mounting and Wall Mounting |
| Frequency band | 2.4 GHz, 5 GHz |
| Wireless standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| 2.4 GHz data rate | 1 – 300 Mbps |
| 5 GHz data rate | 6 – 867 Mbps |
| Ethernet port | 1*10/100/1000 Base-TX port |
| Button | 1*Reset |
| LED indicator | 1*SYS |
| Waterproof level | IP65 |
| Lightning protection | 6000 V |
| Max. power consumption | 11.5 W (Full – load) |
| Power supply standard | IEEE 802.3af & 24V, 0.5A Passive PoE |
| Antenna | 2*5dBi，RP-SMA Connector |
| 2.4 GHz Max. output power | 26 +/- 1.5 dBm |
| 5 GHz Max. output power | 26 +/-1.5 dBm |
| 802.11b RX sensitivity | -93 dBm |
| 2.4 GHz 802.11n (MCS7) RX sensitivity | -72 dBm |
| 5 GHz 802.11a RX sensitivity | -93 dBm |
| 5 GHz 802.11n (MCS7) RX sensitivity | -74 dBm |
| Operating modes | AP, Client + AP |
| Hide SSID | Supported |
| Max. No. of SSID | 2.4 GHz: 8 |
| Max. connected clients | 2.4 GHz: 128 |
| Default login IP address | 192.168.0.254 |
| Operating temperature | -30℃ – 50℃ |
| Operating humidity | (10% – 90%) RH, non-condensing |
| Storage temperature | -30℃ – 70℃ |
| Storage humidity | (10% – 90%) RH, non-condensing |
