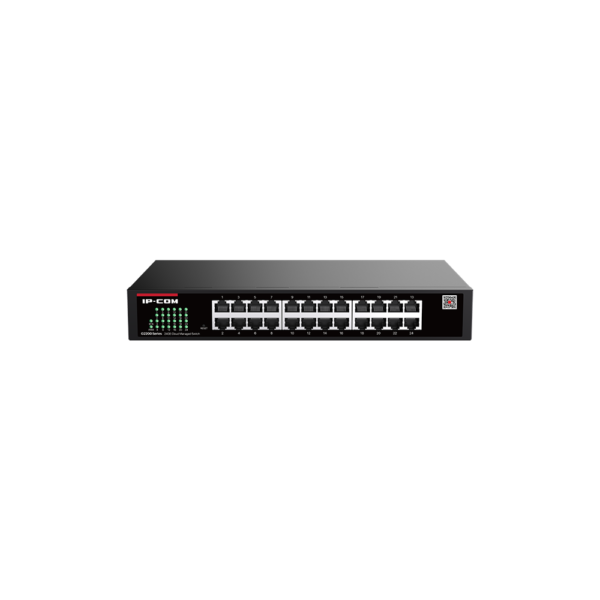

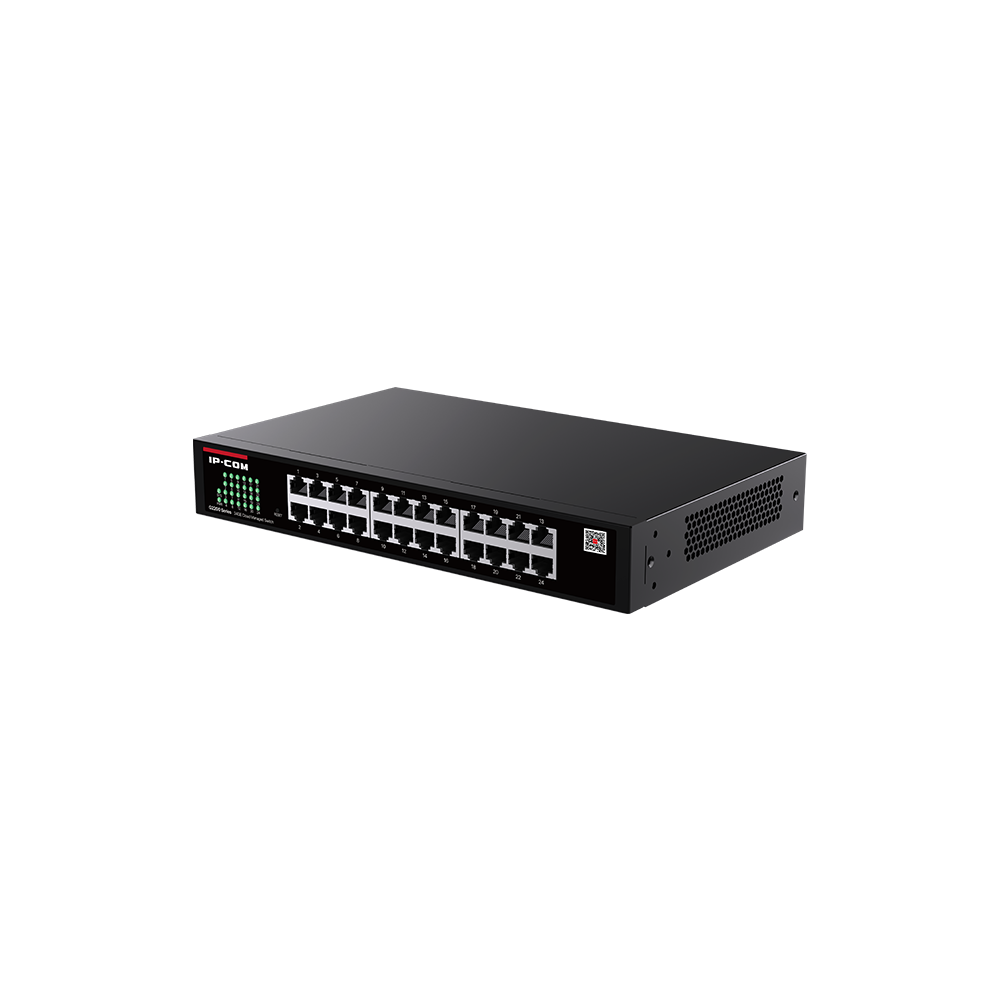

G2224D

IP-COM, Managed Non POE, Network Product, Switch

Smart Switch

24GE Cloud Managed Switch

Compliant with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3z, IEEE802.1p,IEEE802.1q standards
24 × 10/100/1000 Base-T Ethernet ports
8 K MAC address table and MAC address auto learning
IEEE 802.3x full-duplex flow control and half-duplex backpressure flow control
48 Gbps switching fabric for non-blocking line-speed forwarding
Cloud web UI and ProFi App management
Support QVLAN, DHCP Snooping, loop protection, etc.

65 JOD

Model	G2224D
الأبعاد	294mm178mm44mm
Mounting	Desktop mounting: support Wall mounting: support Rack mounting: support
Enclosure material	Metal
Interfaces	(24)1GE RJ45 ports
LED Indicator	Power Link/Act System
Switching capacity	48Gbps
Forwarding rate	35.7Mpps
Power method	100-240V AC，50 / 60Hz
Power consumption	Max：<12W
Lightning protection	Port: 6 KV Power：6 KV
Button	Factory reset
Operating temperature	0°C – 45℃
Storage temperature	-40°C – 70°C
Operating humidity	10% – 90%, non-condensing
Storage humidity	5% – 90%, non-condensing
Certifications	FCC, CE, RoHS
Security features	Support whitelist binding of MAC addresses, ports and VLAN Support port isolation
الشبكات المحلية الافتراضية (VLAN)	Support VLAN transparent transmission Support IEEE 802.1q VLAN
DHCP Server	Support DHCP Client Support DHCP Snooping
STP	Support loop guard on each port
Port mirroring	Support N: 1 port mirroring
QoS	Support DSCP priority Support SP, SWP, WP
Cloud Management	Support configuration delivery from Cloud management platform Support ProFi App management Support log reporting and fault detection Support remote maintenance: reboot, backup, upgrade
Loading and upgrade	Support HTTP upgrade Support configuration import and export
Management and maintenance	Support ProFi App management Support Cloud web UI management Support local web UI management Support ping test
